IMPORTANT: Failure to follow these timing procedure instructions will result in improper timing causing performance problems and possible severe damage to marine engines.
- Mercruiser Thunderbolt Ignition Manual Download
- Mercruiser Thunderbolt Ignition
- Mercruiser Thunderbolt Ignition System
- Mercruiser Thunderbolt Ignition Manual Pdf
- Mercruiser Thunderbolt Ignition Manual Online
- Mercruiser Thunderbolt Ignition Manual Diagram
3.0L Models Only
1. Connect timing light (91-99379 or similar) to No. 1 spark plug wire. Connect power supply leads on light to 12 volt battery. Refer to Specifications – “Engine Rotation and Firing Order,” for cylinder numbering and location.
2. Connect a shop tachometer to engine.
Electrical, ignition and fuel system components on your MerCruiser power package cautions, along with others listed throughout this manual, that you should observe. Wiring Harness-Electrical (Thunderbolt V Ignition) 4, T, BRACKET, 1, This Part is NLA from Mercruiser. 5, 8M, SENDER ASSEMBLY, Oil. On mercruiser applications with fresh water cooling. OLDMERCSAmazon.com: ACDelco MR43LTS Specialty Marine Spark Plug MERCRUISER 305 CID (5.0L) SERVICE MANUAL Pdf Download TwitpicMercury® Remanufacturing Plus-Series Bravo Sterndrives Boating Forum - iboats Boating Forums 1996-Up MerCruiser Thunderbolt V Ignition module support. The scan tool supports 1996-up MerCruiser Thunderbolt V ignition modules. Outboard Rebuild Part 2 Install a Delco EST Ignition on a Mercruiser Part 2 - Mercruiser Thunderbolt Ignition - $367 Easy Upgrade HOW TO Replace Impeller (Water Pump) Mercury Outboard 7.5 hp Mercury Thunderbolt Ignition Manual Dual-ignition systems made these engines less likely to break. More than 30+ service & repair manuals for such sterndrive engines as MerCruiser you can free download. Download Mercruiser 3 7 Starter Wire Diagram.
NOTE: Before starting engine make sure the timing tab and mark on damper are clean. Chalk or white paint on timing mark on damper may help visibility.
3. Install a jumper wire between the two WHITE leads on the distributor. Use Quicksilver 91-818812A1, or fabricate a jumper wire using a 6 in. (150 mm) section of 16 gauge wire with two male bullet terminal ends connected.
4. Bypass the shift interrupt switch, as follows:
A Disconnect wires at shift interrupt switch.
B Temporarily join the engine harness wires together.
IMPORTANT: Do not fail to reconnect these two wires to the shift interrupt switch when timing procedures are complete.
5. Start engine and run at normal idle speed.
6. Aim timing light at timing tab, located on the timing gear cover and crankshaft torsional damper. Check the timing. Refer to “Specifications”.
7. Adjust timing by loosening distributor clamp and rotating distributor body as required until timing mark on damper or pulley lines up with the mark on tab specified in “Specifications.” Tighten clamp and recheck location of timing mark.
8. Aim timing light at timing tab and recheck location of timing mark. Repeat Step 7 until timing is correct.
9. Stop the engine. Torque distributor hold down bolt to 20 lb. ft. (27 N.m).
10. Reconnect the two wires to the shift interrupt switch.
IMPORTANT: Be sure to remove jumper wire before returning engine to service, otherwise timing will not advance.
11. Remove jumper wire at distributor white leads.
12. With timing light still connected, start the engine and run at IDLE. Verify that timing did advance to 12o BTDC, plus or minus 2o. At 2400-2800 RPM maximum (total) advance is obtained and should be 27o BTDC (plus or minus 2o).
13. Stop the engine and remove the timing light.
Mercruiser Thunderbolt Ignition Manual Download
V6 and V8 Carbureted Models (Thunderbolt V Ignition)
1. Connect timing light (91-99379 or similar) to No. 1 spark plug wire. Connect power supply leads, if applicable, on light to 12 volt battery. Refer to Specifications – “Engine Rotation and Firing Order” for cylinder numbering and location.
2. Connect a shop tachometer to engine.
3. Using a jumper wire, connect the ignition system timing lead (PUR/WHT wire) to a good engine ground (-). This locks the ignition module into the “Base Timing Mode”.
NOTE: Before starting engine make sure the timing tab and marks on damper are clean. Chalk or white paint on timing marks may help visibility.
4. Start engine and run at normal idle speed. Allow engine to reach normal operating temperature.
5. Aim timing light at timing tab, located on the timing gear cover and crankshaft torsional damper.
6. If adjustment is required, adjust timing by loosening distributor clamp and rotating distributor body as required until timing mark on damper or pulley lines up with the mark on tab specified in “Specifications”. Tighten clamp and recheck location of timing mark.
7. Make sure that the distributor has been tightened. Remove the jumper wire from the timing terminal.
8. Remove jumper wire between the timing lead (PUR/WHT wire) and ground (-).
IMPORTANT: Be sure to disconnect the jumper wire from between the ignition system timing lead and ground (-) before attempting to resume normal operations. If the jumper wire is left in place, the ignition module will operate in the “Base Timing Mode”. This means that the additional timing advance features would not function.
9. Stop engine and remove timing light.
V6 and V8 EFI Models (EFI Ignition)
Two items of test equipment are required: an inductive pickup timing light and one of either a Scan Tool, Marine Diagnostic Code Tool or MerCruiser Special Timing Tool (Quicksilver 91-805747A1).
1. Connect timing light (91-99379 or similar) to No. 1 spark plug wire. Connect power supply leads, if applicable, on light to 12 volt battery. Refer to Specifications – “Engine Rotation and Firing Order,” for cylinder numbering and location.
2. Connect a shop tachometer to engine.
NOTE: Before starting engine make sure the timing tab and mark, or marks, on crankshaft damper are clean. Chalk or white paint on timing marks may help visibility.
NOTE: If NOT Using MerCruiser Timing Tool: With engine running, set the scan tool or Marine Diagnostic Code Tool to the SERVICE MODE and follow manufacturer’s instructions. On 350 Mag MPI Model, engine RPM will automatically increase to a higher RPM. You do not have to increase it manually, as stated in the following steps.
3. Connect the Timing Tool (or appropriate tool, as listed above) to the DLC connector (in the electrical box or on the electrical bracket) of the wiring harness.
4. Start the engine. Allow it to reach normal operating temperature.
5. On all models except 350 Mag MPI: Manually adjust the engine throttle to 1800 RPM.
6. Aim timing light at timing tab, located on the timing gear cover and crankshaft torsional damper. Check the timing. Refer to “Specifications.”
7. Loosen the distributor clamp bolt enough to just be able to rotate the distributor with some resistance.
8. Aim timing light at timing tab and recheck location of timing mark. Slowly rotate the distributor clockwise or counterclockwise to adjust the timing to specified degrees.
9. Aim timing light at timing tab and recheck location of timing mark. Repeat Step 8 until timing is correct. Torque distributor hold down bolt to 30 lb. ft. (40 N.m).
10. Manually close the throttle to bring engine RPM back to idle.
IMPORTANT: Be sure to disconnect MerCruiser Special Timing Tool from the DLC connector, or set the tool to NORMAL MODE if using the Scan Tool or Marine Diagnostic Code Tool, before attempting to resume normal operations. If the MerCruiser Special Timing Tool is left in pace or the setting of the tool remains in SERVICE MODE, the ignition system will operate only in the “Service Mode”. This means that the additional timing advance features would not function.
11. Disconnect the MerCruiser Special Timing Tool from the DLC connector. If using the Scan Tool or Marine Diagnostic Code Tool, set the tool to NORMAL MODE. Disconnect the tool.
12. Stop the engine. Turn ignition key to OFF position.
13. Remove timing light.
MERCRUISER PART DIAGRAMS
The Thunderbolt V has 5 wires two of which go to the distributor, one is a wiring diagram. schematron.org Im looking to replace the thunderbolt V ignition system. wanted to replace the mercruiser ignition system with something new.
6/6/2017 Mercruiser Thunderbolt Ignition System and The CureMercruiser Thunderbolt Ignition
Off of the engine mounted wire harness there are 2 grey wires with small eye connectors.. elec diagram.
Section 4B - Thunderbolt V Ignition System. Table of .

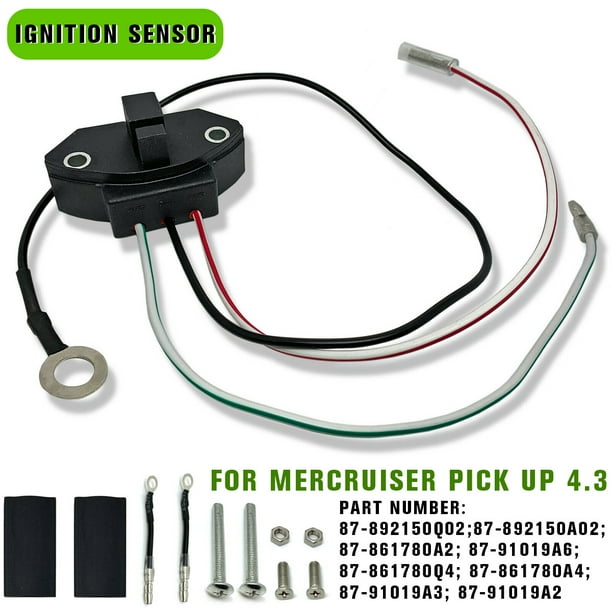

Mercruiser Thunderbolt Ignition System
Electrical, ignition and fuel system components on your MerCruiser power package cautions, along with others listed throughout this manual, that you should observe. Wiring Harness-Electrical (Thunderbolt V Ignition) 4, T, BRACKET, 1, This Part is NLA from Mercruiser. 5, 8M, SENDER ASSEMBLY, Oil.
I have a LX with thunderbolt V ignition on it. I run the engine in Use engine diagrams to find & order parts for your Mercruiser engine.
. Inspect the ignition key wiring for a loose or broken wire strands on the switch.Jun 19, · Need wiring schematic for mercruiser with thunderbolt IV 4 ignition My system has been modified as each engine doesn't match the other and seeing how they are both in the same boat, I would think they would be the same! Mercruiser Thunderbolt ignition systems.
Mercruiser introduced the Thunderbolt IV onto their engines in , alongside the introduction of the 1-R drives. The TB-IV system was used until the introduction of TB-V mid-way through Thunderbolt V was an improvement on an already exceptionally reliable and well performing system.
WIRING DIAGRAMS - 4F-1 Wiring Colors for MerCruiser NOTE: Color codes listed below DO NOT apply to fuel injection system harnesses. . Find best value and selection for your MerCruiser Thunderbolt Ignition Wiring Harness USED search on eBay.
World's leading marketplace. Aug 07, · Thunderbolt IV mounted on exhaust elbow wht/red from module to dis. wht/grn from module to dis.
Mercruiser Thunderbolt Ignition Manual Pdf
gray neg on coil to tac. and to module.
Mercruiser Thunderbolt Ignition Manual Online
purple on pos. coil from module and kill switch /ignition.
Mercruiser Thunderbolt Ignition Manual Diagram
blk. is ground.Mercruiser Thunderbolt 4 Wiring Diagram | Wiring LibraryHow Mercruiser Thunderbolt ignition systems work. Page: 1 - iboats Boating Forums |
